ZestET2-J Ethernet FPGA Board

ZestET2-J Ethernet FPGA Board

The ZestET2-J is an easy to use FPGA board with Xilinx Artix-7 user programmable FPGA and a very high performance TCP/IP Offload Engine (TOE) chip. The board can be used as a programmable interface to external devices, for high speed processing of streaming data, and for data acquisition and control.

It provides a simple bridge between a high speed computer network and a programmable digital interface. The TOE sustains a data rate over 100MBytes/s in each direction and includes a user programmable CPU for optional higher level protocols.

For evaluation there are two breakout boards available:

• ZestET2-J-BRK-H simply connects the User FPGA IO pins to four 0.1” pitch headers. It also has the standard Xilinx JTAG header for the ZestET2-J User FPGA.
• ZestET2-J-BRK-F connects the User FPGA IO pins to an FMC connector and a 0.1” pitch header. It includes all power supplies for the ZestET2-J and the FMC and is powered from 12V. It also has the standard Xilinx JTAG header for the ZestET2-J User FPGA and the FMC.

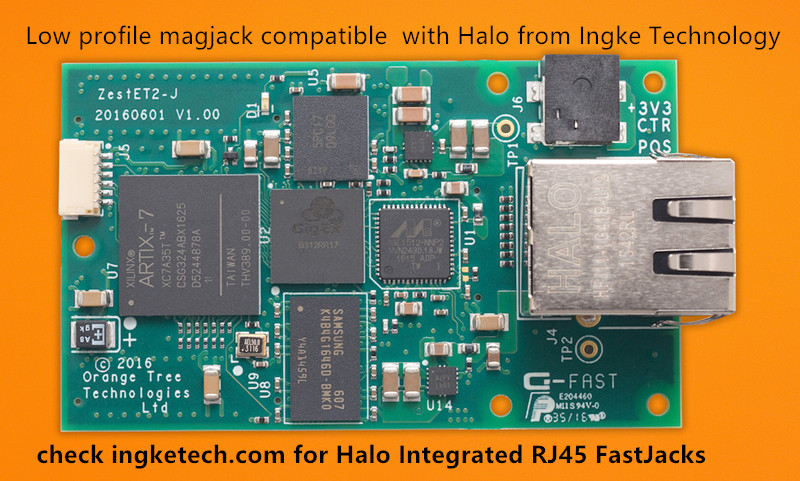

Compatible integrated RJ45 FastJacks HFJ11-1G41E-L12 on ZestET2-J Ethernet FPGA Board are provided by Ingke Technology Co.,Ltd
If you need HALO Electronics Ethernet magnetic transformers and integrated RJ45 FastJacks HFJ11-1G Series, welcome to contact Ingke Technology at www.ingketech.com
